Kwikset

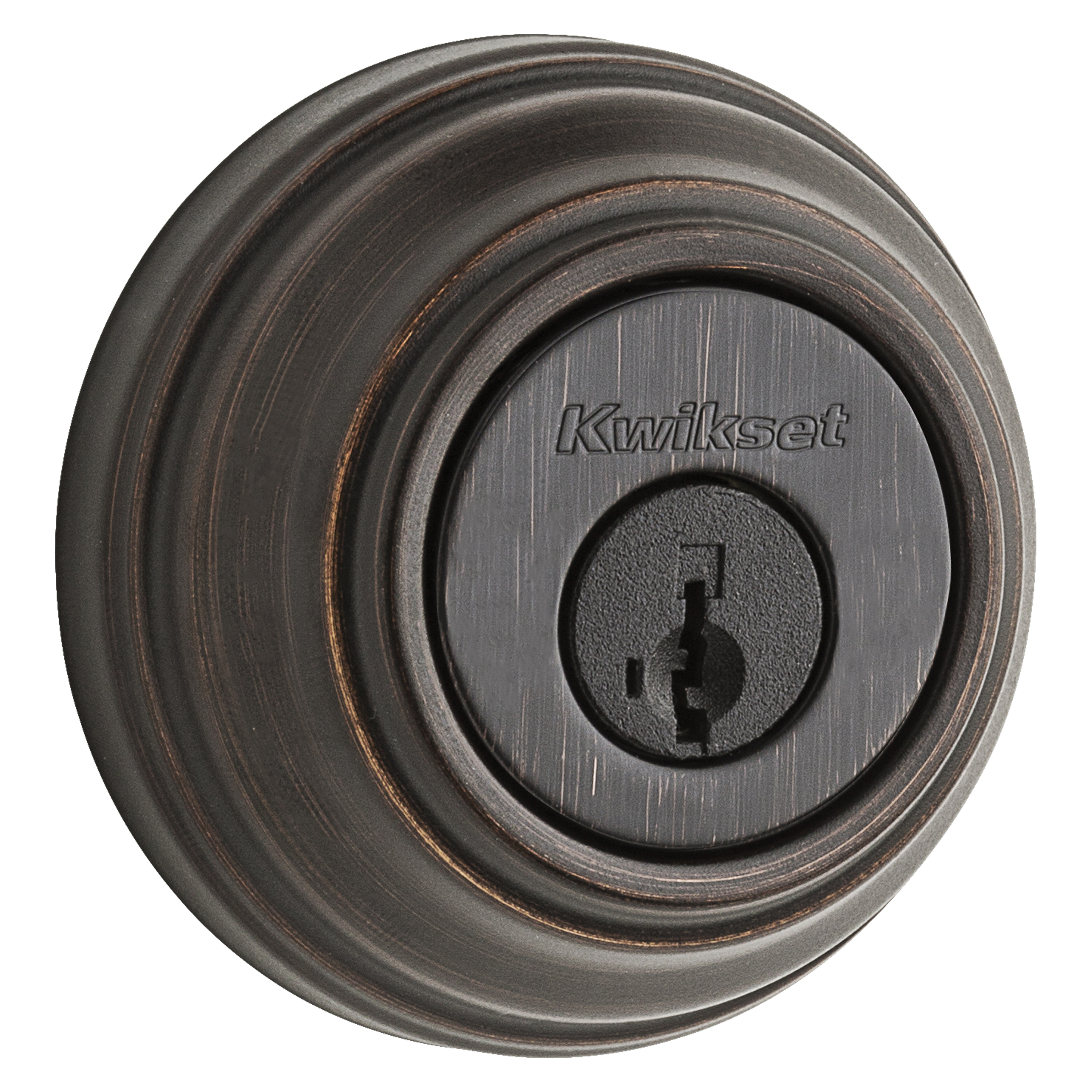

Kwikset 98511PSMTCP Deadbolt, 1 Grade, Keyed Alike Key, Steel, Venetian Bronze, 2-3/8, 2-3/4 in Backset, KW1, K4 Keyway
- Backset Size: 2-3/8, 2-3/4 in
- Cross Bore Diameter: 1-1/2, 2-1/8 in
- Dimensions: 2-5/8 in H
- Door Thickness: 1-3/4 to 1-3/8 in
- Edge Bore Diameter: 1 in
- Model #: 98511PSMTCP
- UPC #: 883351025409
- SKU: 1086776
Product Details
At Kwikset, we believe people shouldn't have to settle when it comes to home security. And the excellent security is smart security. The Kwikset Signature Series 980 deadbolt is both tough and attractive. It is BHMA/ANSI Grade 1 certified - the highest level of residential security.Item Specifications
| Backset Size | 2-3/8, 2-3/4 in |
|---|---|
| Cross Bore Diameter | 1-1/2, 2-1/8 in |
| Dimensions | 2-5/8 in H |
| Door Thickness | 1-3/4 to 1-3/8 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Finish | Venetian Bronze |
| Includes | (3) Anti-Pick Top Pins, Ultra-Strike Door Jamb Brace, (3) 3 in Screws and BumpGuard |
| Key Type | Keyed Alike |
| Keyway Type | KW1, K4 |
| Material | Steel |
|---|---|
| Number of Cylinders | 2 |
| Projection Size | 1-1/32 in |
| Re-Key Technology | SmartKey |
| Security Grade | 1 |
| Strike Size | 1-1/8 x 2-3/4 in |
| Strike Type | Round Corner |
| Suitable for | Standard Doors |
| Throw Length | 1 in |
MORE DETAILS:
- Kwikset_100002988_Catalog.pdf
- Kwikset_100000380_Specification_Sheet.pdf
- Warranty: Limited Lifetime
