- Backset Size: 2-3/8, 2-3/4 in
- Backset Type: Adjustable
- Bolt Throw Size: 1 in
- Bolt Type: Motorized
- Commercial/Residential: Residential
- Model #: 913TRL-15
- UPC #: 883351489317
- SKU: 1321166

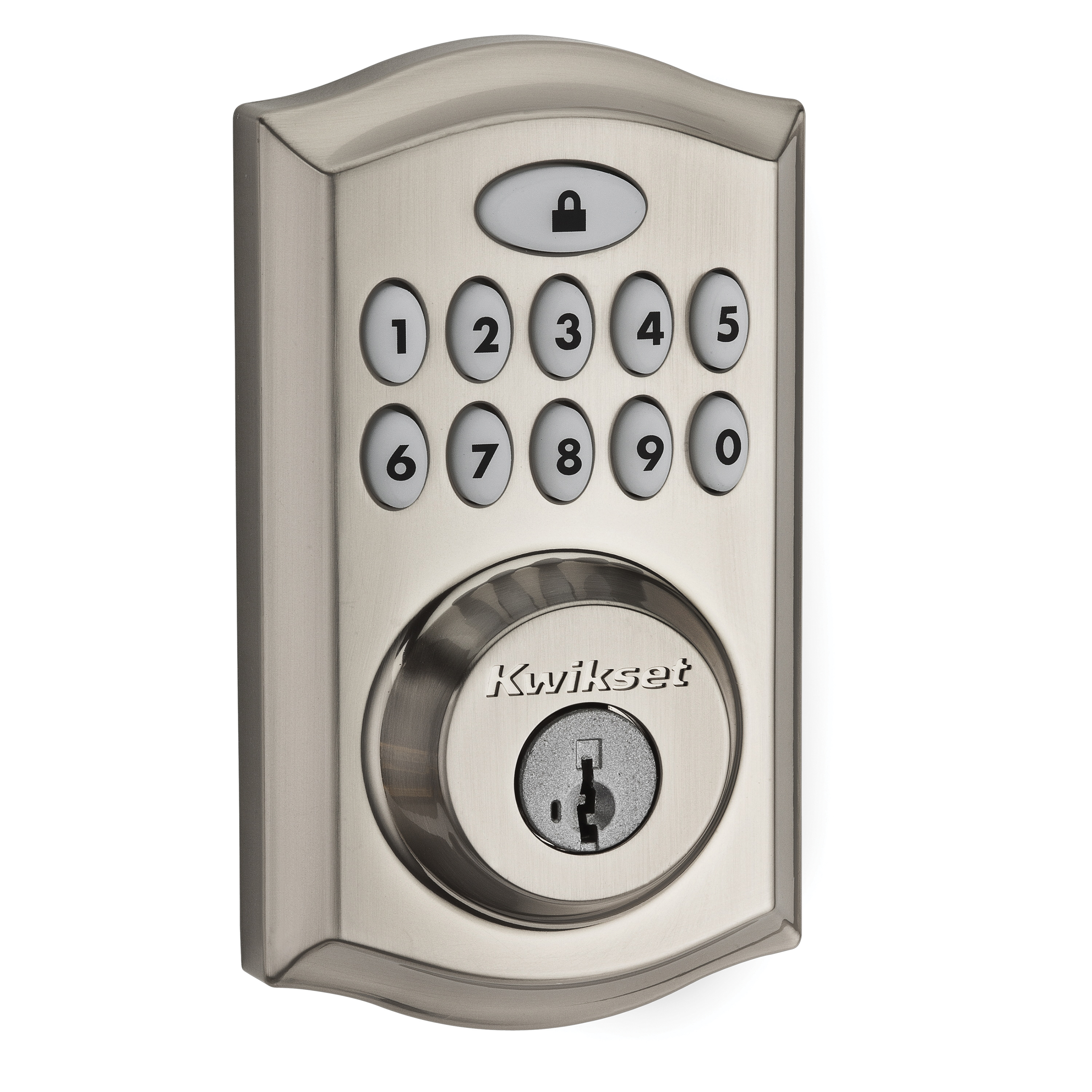

The SmartCode touchpad electronic deadbolt is a one-touch locking motorized deadbolt. With your personalized code, you can enter your home with the convenience of keyless entry and the back-lit keypad provides increased visibility. SmartCode is easy to install, program and use and operates on four AA batteries. It also features SmartKey® Security™ as the back-up keyway.
| Backset Size | 2-3/8, 2-3/4 in |
|---|
| Backset Type | Adjustable |
|---|
| Bolt Throw Size | 1 in |
|---|
| Bolt Type | Motorized |
|---|
| Commercial/Residential | Residential |
|---|
| Cross Bore Diameter | 2-1/8 in |
|---|
| Design | Traditional |
|---|
| Door Handing | Reversible |
|---|
| Door Thickness | 1-3/4 to 1-3/8 in |
|---|
| Edge Bore Diameter | 1 in |
|---|
| Faceplate Size | 1 x 2-1/4 in |
|---|
| Finish | Satin Nickel |
|---|
| Interior Handle Type | Turn Piece |
|---|
| Keypad Included | Yes |
|---|
| Keyway Type | KW1 |
|---|
| Latch Type | Round Corner |
|---|
| Material | Zinc |
|---|
| Number of Cylinders | 1 |
|---|
| Number of User Codes | 16 |
|---|
| Power Source | Battery |
|---|
| Projection Size | 1-3/16 in |
|---|
| Security Grade | 2 |
|---|
| Strike Size | 2-3/4 in H x 1-1/8 in W |
|---|
| Strike Type | Round Corner |
|---|
